A bad ground is one of the most common causes of vehicle electrical faults, and you can confirm or eliminate it with a single tool: a digital multimeter set to DC volts. The method that matters most is the voltage drop test, performed while the circuit is under load. A healthy ground connection reads 0.1 volts or less across it; a reading above 0.2 volts points to a poor connection that needs cleaning or repair. This guide covers 12-volt negative-ground systems, standard on most modern cars and trucks, and walks through a symptom-based framework for isolating the fault.
Understanding Automotive Electrical Grounds
In a vehicle, the ground is the return path that lets current flow back to the battery. Because the body and chassis are metal and conduct electricity, manufacturers run a single cable from the battery's negative terminal to the chassis, and the whole vehicle effectively becomes the return loop, as the ECU specialists at Haltech explain. That saves running two wires to every device—but it also means every ground connection in the car is part of one shared current path.
Not all grounds are equal, and this distinction drives the whole diagnostic process. High-current power grounds—such as the battery-to-chassis cable and the engine-block ground strap—feed hungry components like the starter motor and ignition coils. Low-current signal grounds are the dedicated return wires that sensors and the engine control unit use to reference their voltage signals. Haltech warns against the assumption that "the ground is ground, it's just a loop back to the battery"—it isn't that simple, because sensitive electronics depend on a clean, stable reference that a shared, corroded chassis path can't always provide.
Common Symptoms of a Bad Ground
Grounding faults announce themselves through a recognizable cluster of electrical misbehavior. OnAllCylinders, an automotive resource site, lists bad grounds as a leading cause of intermittent performance, weak or dim lights, poor starting, bad sensor feedback, and weak ignition. A repair shop guide from Simon's Auto Repair adds flickering lights, difficulty starting, and malfunctioning systems to the list.
Some symptoms map neatly to ground type. Slow cranking points at the high-current engine and battery grounds. Erratic or jumping gauges, glitchy push-button start systems, buzzing relays, and random module shutdowns typically trace to weak or "floating" grounds, as Watson's StreetWorks, a wiring parts retailer, describes. Modern sensors and fuel injectors are especially sensitive: bad grounds can throw off their precise voltage signals, producing misfires, erratic idle, or a check-engine light that returns no matter what you swap.
The cost of ignoring this is real. Tuning specialist Zac Perston, writing for High Performance Academy, notes that grounding problems are often "fixed" by trial-and-error parts replacement—time-consuming and expensive, and sometimes replacing parts that were fine all along.
Tools for Diagnosing Grounding Faults
You need only a basic digital multimeter capable of measuring DC voltage. Select the DC volts scale; if your meter has auto-ranging, use it. Beyond the meter, your most useful tools are your eyes: many technicians find body ground issues through careful visual inspection first. Look for rust, paint, or looseness at ground connections—all of which impede conductivity, according to test-equipment maker Fluke—and for physical clues like a seized cable or blistered cable jacket, which Gears Magazine flags as key indicators of a failing ground.
One caution before you test: a plain resistance (continuity) check can mislead you. Resistance tests are performed with no current flowing, so a ground connection can appear fine when the circuit is dead yet still cause problems under load. That is exactly why the voltage drop test is the primary tool.
The Voltage Drop Test: Your Primary Diagnostic Tool
A voltage drop test measures how much voltage is being lost across a connection while current is actually flowing. A perfect connection drops essentially nothing; corrosion, rust, or a loose joint adds resistance, and the meter displays that loss directly. Because it measures the circuit under real operating conditions, it catches faults that a dead-circuit resistance test misses—Kaiweets, a test-equipment maker, notes it is particularly valuable for intermittent issues or dim lights even when the resistance test appeared normal.

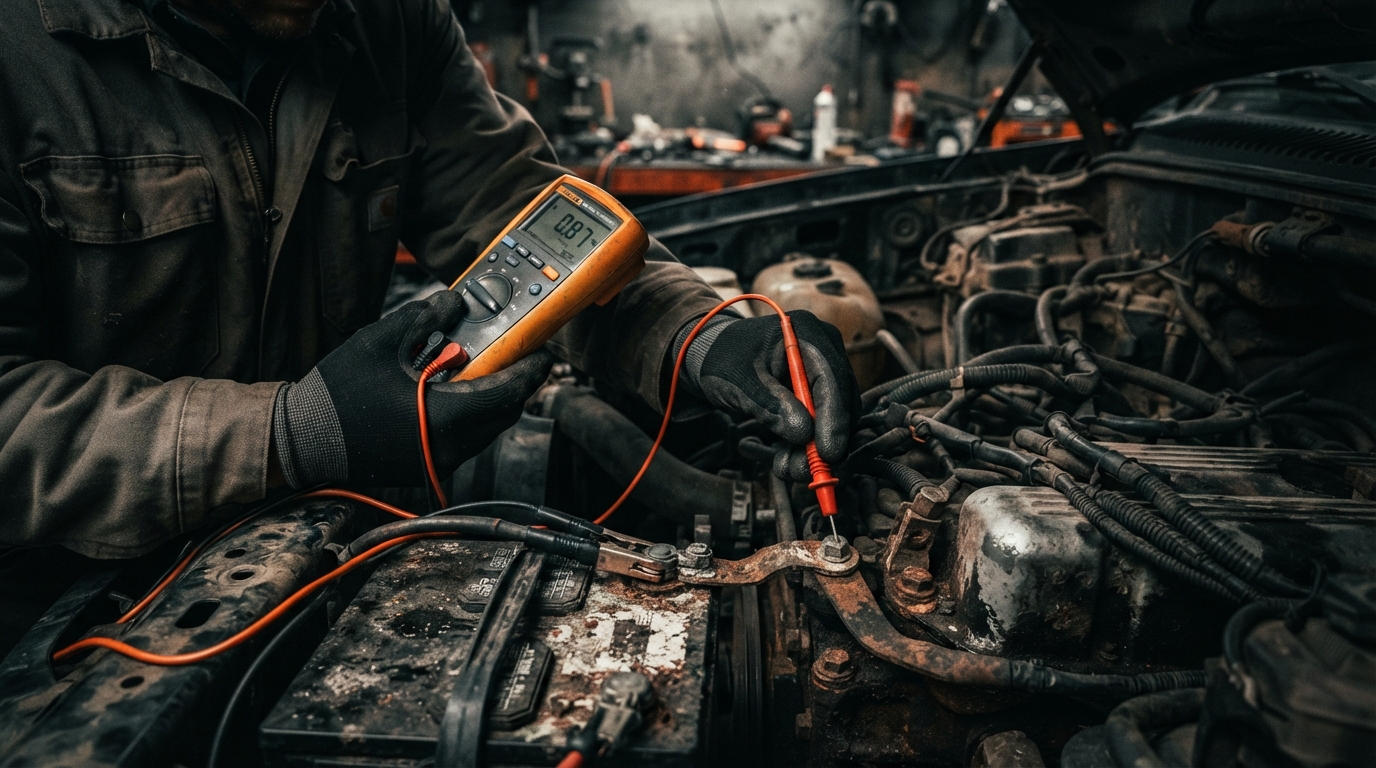

The procedure is simple. Set the meter to DC volts. Place one lead on the component's ground point (or the chassis/firewall/engine block you're testing) and the other directly on the battery's negative post. Then put the circuit under load: crank the engine, switch on the lights, or turn on as many electrical accessories as practical. The displayed number is the voltage drop across that ground path.
Interpretation thresholds are consistent across sources: 0 to 0.1 volts is acceptable, and anything above 0.2 volts means the ground needs cleaning or rework. Gears Magazine reports that a healthy body ground usually measures 0.10 volt or less, and a failing one reads dramatically higher—many times greater than normal—so there is typically little guesswork.
Automotive Grounding Fault Diagnostic Framework
Use this table to match your symptom to the most likely grounding point, run the correct test, and interpret the reading. The framework works by connecting each symptom category to the specific ground path that serves it, then verifying high resistance at that point with a loaded voltage drop measurement.
| Symptom | Ground to Test | Test Procedure | Good Reading | Bad Reading Means |
|---|---|---|---|---|
| No-start or slow crank | Battery negative cable to engine block and chassis | Leads from engine to negative battery terminal; disarm ignition and crank for a few seconds | 0–0.1 V | Above 0.2 V: repair the engine ground circuit and retest |
| Flickering or dim lights | Ground for the affected light circuit, usually to chassis or body | Leads from component ground to negative battery post, lights switched on | 0–0.1 V | Above 0.2 V: clean or rework the ground |
| Erratic gauges, misfiring sensors, recurring check-engine light | Signal ground return path for the sensor or ECU, often a dedicated ground wire | Leads from sensor/ECU ground to negative battery terminal, circuit active | 0–0.1 V | Above 0.2 V: high resistance is distorting the sensor's voltage signal |
| Intermittent failures, glitches, random shutdowns | Grounds for the affected component or module; also test body ground (firewall to negative post) with accessories on | Compare voltage drop across multiple ground points; any point reading significantly higher than others is suspect | 0–0.1 V (healthy body grounds often 0.10 V or less) | Above 0.2 V, or one point far higher than the rest: likely problem area |
Work systematically: test the main battery-to-chassis ground first, then move the chassis lead to individual points around the vehicle—engine block, firewall, body panels, component brackets—and compare readings. Pay particular attention to grounds near recently installed components or the parts showing symptoms. Fluke recommends adopting the habit of testing grounds first, before tune-ups or any starting, charging, ABS, or air-conditioning diagnosis, because ground circuit voltage drop can cause most of the associated symptoms.
Confirming and Resolving Grounding Issues
After identifying a poor ground connection using the diagnostic framework, the next action is to clean, tighten, or repair the faulty ground point to restore proper electrical conductivity. That means bare, rust- and paint-free metal, a secure fastener, and an intact cable—Fluke emphasizes that rust or paint at the connection impedes conductivity.
The observable signal of a successful repair is the resolution of the original electrical symptom—lights return to full brightness, the engine cranks normally, gauges read accurately—plus a voltage drop reading of 0.1 volts or less across the repaired ground connection under load. Retest after every repair; if the reading is still high, move to the next ground point in the framework rather than replacing parts. Note that this guide covers grounding faults specifically, not short circuits or failed components, and you'll need your vehicle's wiring diagram to locate model-specific ground points.
